Stormwater Tools | ALV-SW-VH-1

Treatment BMPs

ALV-SW-VH-1

Basics

Name

ALV-SW-VH-1

Type

Vegetated Swale

Jurisdiction

City of Aliso Viejo

Owner

Private - WQMP

Year Built

ID in System of Record

VH-1

Water Quality
Management Plan

Vantis Hotel

Sizing Basis

Other (less than Water Quality)

Trash Capture Status

No Trash Capture

Required Lifespan of Installation

Unknown

Required Field Visits Per Year

Required Post-Storm Field Visits Per Year

Notes

Performance / Modeling Attributes

Attribute	Value
Watershed
Time of Concentration	10 mins
Treatment Rate	0.11 cfs
Wetted Footprint
Effective Retention Depth
Underlying Hydrologic Soil Group (HSG)	D
Dry Weather Flow Override?

Modeled BMP Performance

This Treatment BMP record is missing fields required to calculate model results. Please provide a verified delineation and required Modeling Parameters above.

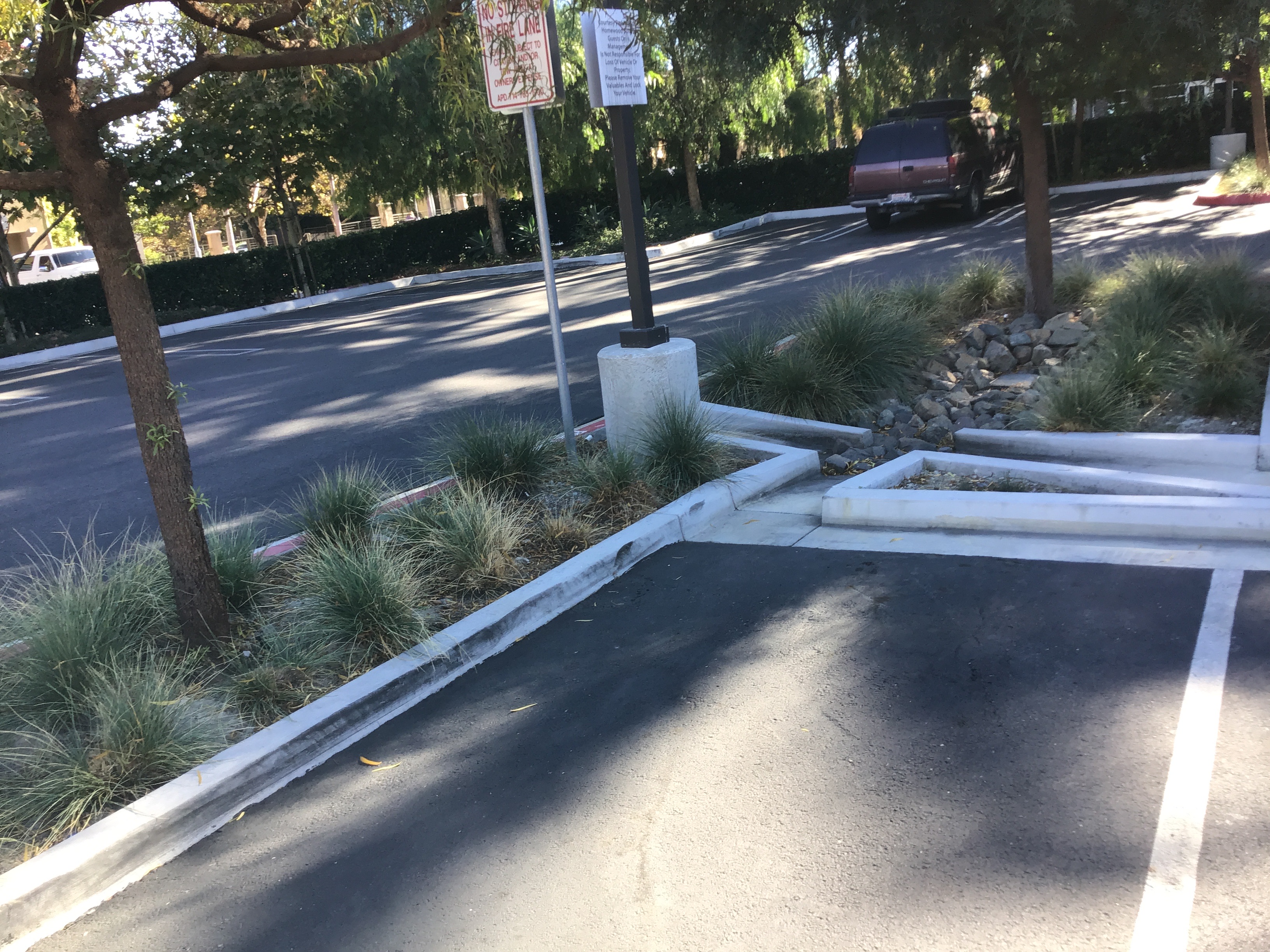

Images

Location

Delineation Type

Distributed

Delineation Area

0.44 ac

Delineation Status

Verified

Upstream BMP

Not Provided

Drainage Area Land Uses

Land Use	Area (ac)	Impervious Area (ac)
Commercial	0.44	0.32
Total	0.44	0.32

Field Visits

Currently viewing of Field Visits Reset Download Table

Funding Events

No Funding Events identified for this Treatment BMP

Benchmark & Threshold Values

Observation Type	Benchmark	Threshold
Material Accumulation as Percent of Total System Volume	-	-
Desirable Vegetation Cover	-	-
Surface Erosion	-	-
